Knowledge of Flywheel special machine tool

2025-12-12 16:02:56

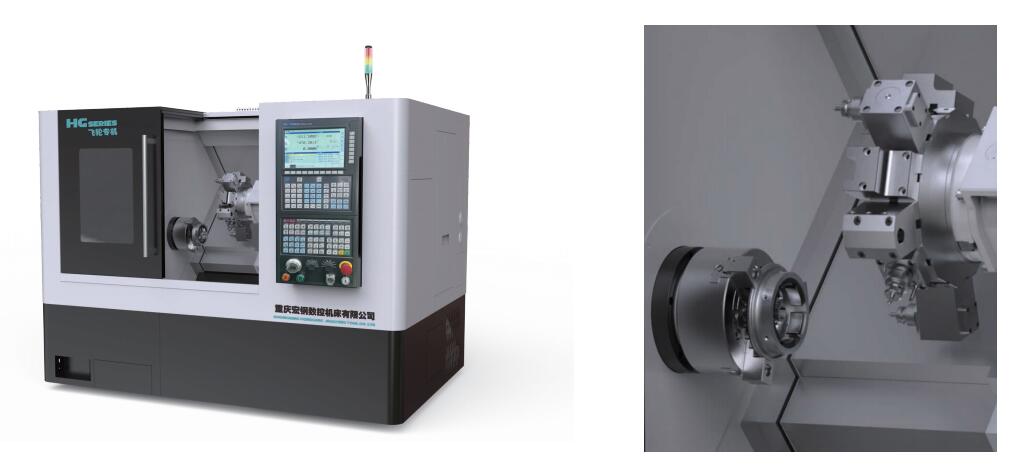

Flywheel special machine tool are mainly used in industries such as automotive parts, plumbing valves, and molds. It is also suitable for batch processing of complex, large-sized, and high-precision shaft, disc, and other parts. It can automatically complete chip processing of rotating bodies such as inner and outer circles, grooves, conical surfaces, spherical surfaces, and various metric and imperial threads.

When an Flywheel specific machine tool experiences mechanical failure and requires maintenance, disassembly is generally used to determine which component is at fault. So, what principles should be followed when disassembling mechanical components of Flywheel punch press? Yuhuan Yonggao CNC machine tool Factory summarizes the suggestions as follows:

1. Firstly, it is necessary to be familiar with the technical data and drawings of Flywheel specific machine tool, as well as the mechanical transmission principles, and to master the structural characteristics, assembly relationships, positioning pins, shaft sleeves, spring coils, locking nuts, locking screws, and the position and exit direction of the top screw of each component.

2. Before dismantling, first cut off and remove the power supply of the machine tool and the parts that are connected to the workshop power. After cutting off the power, the disassembly procedure of the machine tool should adhere to the principle opposite to the assembly procedure. First, remove the external accessories, then disassemble the entire machine into component assemblies, and then disassemble them all into parts, and place them together according to the components.

3. When dismantling an Flywheel special machine tool, the principle of how much force should be used for disassembly should usually be adhered to. If abnormal situations occur, the cause should be investigated to prevent parts from being bumped, scratched, or even damaged during disassembly. Hot assembled parts should be disassembled using heating, such as hot oil heating the outer ring of a hot assembled bearing for disassembly. When disassembling sliding components, consideration should be given to the suction force of the oil film between the sliding surfaces. Generally, destructive disassembly is not allowed during the disassembly process.

4. We must adhere to the principles of caution and safety when dealing with large components of Flywheel punch press. During disassembly, carefully check whether the locking screws, pressure plates, and other parts have been disassembled. When hanging, it is necessary to roughly estimate the center of gravity position of the parts and select a suitable diameter of hanging ropes and hanging force points.

5. If the technical information of the Flywheel special machine tool is incomplete, necessary records must be made during the disassembly process in order to reassemble according to the principle of disassembly before assembly during installation.

In disassembly, in order to prevent the assembly relationship and position of key components from being disrupted, and to avoid a decrease in accuracy during reassembly, clear markings should be made on the assembly parts with a marking needle. The disassembled shaft components should be suspended to prevent bending and deformation. Precision parts should be stored separately to avoid damage.
