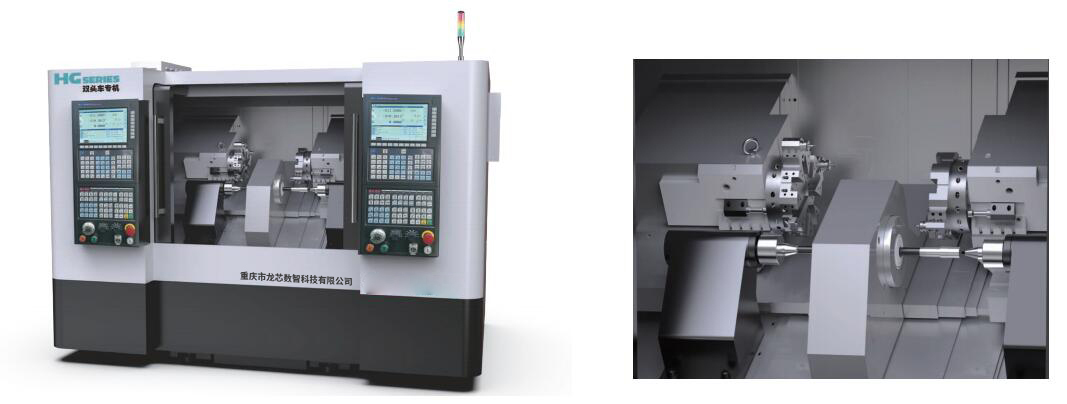

Double-headed lathe special machine tool are lathes that can simultaneously turn both ends of workpieces, mainly used to solve the problem of coaxiality machining at both ends of long bar and tube parts. The maximum machining shaft diameter can reach 350mm, and the machining length range covers 1 meter to 2.5 meters.

This CNC double head lathe is divided into CNC automatic type, semi-automatic manual type, and combined type according to the operation mode, equipped with a stepper/servo XZ axis system, with a spindle speed range of 200-2200 revolutions per minute and a Z-axis fast movement speed of 24M/min.

The Double head CNC lathe adopts a 45 degree inclined integral bed structure, equipped with high-precision rolling guide rails and hydraulic clamping system. The dual channel control system supports special-shaped machining at both ends, and can be optionally equipped with functions such as milling and drilling.

Its dual spindle design can achieve one-time clamping to complete the processing of outer circles, end faces, inner holes, etc. at both ends, with processing efficiency increased by more than 50% compared to traditional processes. Typical applications include mass production of parts such as oil cylinders, piston rods, and input shafts for new energy vehicles.

Some models are also equipped with automatic chip removal devices and robotic arms, supporting automatic loading and unloading and pre - and post processing inspection.

The manufacturing industry has witnessed significant advancements in machine tools, with the double-headed lathe special machine tool emerging as a game-changer in precision machining. This innovative equipment enhances productivity, accuracy, and efficiency, making it indispensable in industries such as aerospace, automotive, and medical device manufacturing.

A double-headed lathe special machine tool is a highly specialized piece of equipment designed to perform simultaneous machining operations on a workpiece. Unlike conventional lathes, which feature a single spindle, this machine incorporates two spindles (heads) that work in tandem, drastically reducing cycle times and improving consistency.

1. Dual-Spindle Design

The most distinctive feature of a double-headed lathe is its dual-spindle configuration. This allows for parallel processing, where one spindle roughs out the workpiece while the other finishes it, or both perform different operations simultaneously.

2. High Precision and Repeatability

Advanced CNC (Computer Numerical Control) systems ensure micron-level accuracy, making these machines ideal for high-tolerance components. The synchronized operation of both heads minimizes errors caused by repositioning.

3. Reduced Cycle Time

By eliminating the need to transfer workpieces between machines, the double-headed lathe significantly cuts down production time. This is particularly beneficial for mass production environments.

4. Versatility in Machining

These machines can handle a wide range of materials, including metals, plastics, and composites. They support multiple operations such as turning, milling, drilling, and threading, all in a single setup.

5. Automation Compatibility

Many double-headed lathe special machine tools are designed to integrate seamlessly with robotic arms and automated loading systems, further enhancing efficiency in smart factories.

Aerospace: Used for machining turbine shafts, landing gear components, and other critical parts requiring tight tolerances.

Automotive: Ideal for producing engine components, transmission shafts, and brake system parts with high repeatability.

Medical Devices: Ensures flawless machining of surgical instruments, implants, and prosthetics.

Electronics: Used for manufacturing connectors, housings, and other miniature components.

When selecting a double-headed lathe special machine tool, manufacturers must evaluate:

Spindle Power & Speed: Determines the machine’s ability to handle hard materials at high speeds.

Tooling Capacity: The number of tool stations affects flexibility in complex machining tasks.

Control System: Advanced CNC software ensures smooth operation and real-time adjustments.

Rigidity & Vibration Damping: Essential for maintaining precision during high-speed operations.

The future of double-headed lathe special machine tools lies in:

AI-Driven Optimization: Machine learning algorithms will predict tool wear and optimize cutting parameters.

IoT Integration: Real-time monitoring of machine performance for predictive maintenance.

Hybrid Machining: Combining additive and subtractive processes for complex geometries.

The double-headed lathe special machine tool represents a leap forward in machining technology, offering unparalleled efficiency, precision, and versatility. As industries demand faster production cycles without compromising quality, this advanced machine tool will continue to play a pivotal role in shaping the future of manufacturing.
