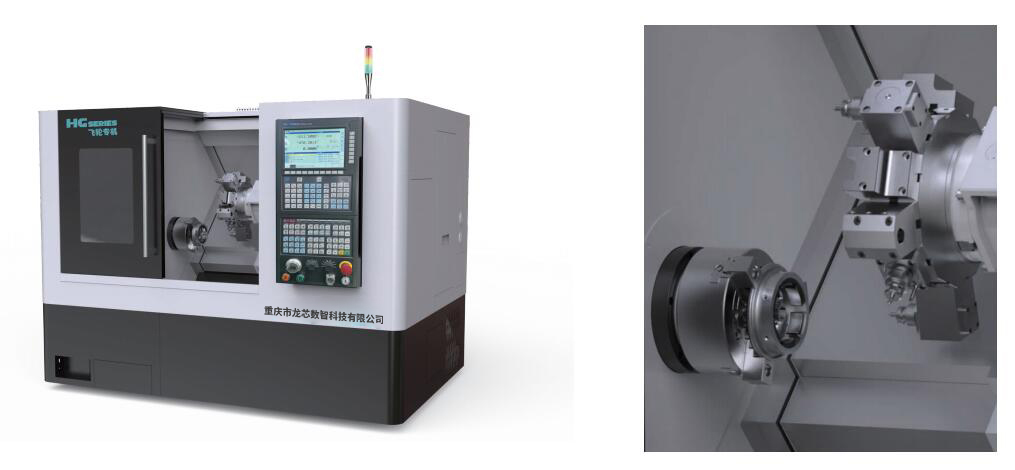

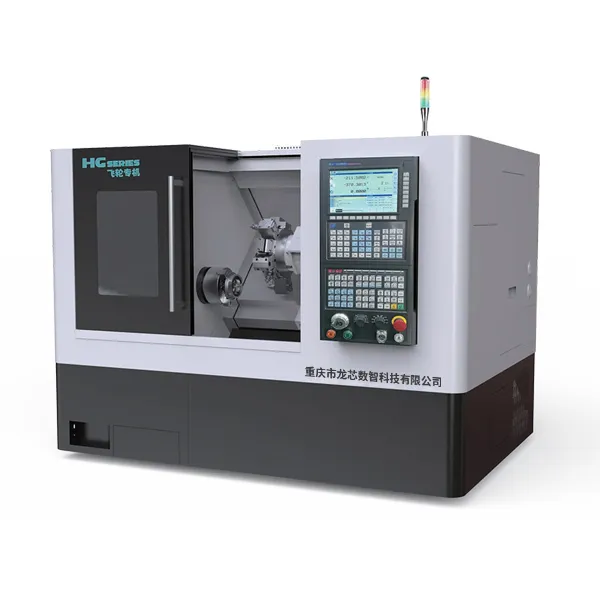

Flywheel special machine tool are machine tools specifically designed for processing components such as engines in automobiles or mechanical equipment. It adopts a single arm structure, consisting of four parts: spindle, tool holder, machine bed, and turntable. During processing, the workpiece is fixed on the turntable, and the spindle drives the tool holder to rotate along the surface of the workpiece, completing the cutting process.

(1) Before processing, it is necessary to carefully inspect the equipment to ensure that there are no malfunctions;

(2) Use appropriate workpiece fixtures and cutting tools to ensure cutting accuracy and safety;

(3) Attention should be paid to lubrication and cooling during processing to avoid equipment overheating and damage.

In summary, Flywheel punch press are a widely used, high-efficiency, and High-precision machine tool equipment, but they also have certain limitations and precautions.

In actual processing, it is necessary to select appropriate Flywheel specific machine tool processing methods based on specific workpiece requirements and processing techniques to ensure processing effectiveness and equipment safety.

The flywheel is a critical component in various mechanical systems, particularly in engines and energy storage devices. Its primary function is to store rotational energy, ensuring smooth operation by mitigating fluctuations in speed. To manufacture flywheels with precision and efficiency, specialized machine tools—known as flywheel special machine tools—are essential. These machines are designed to handle the unique requirements of flywheel production, including high accuracy, durability, and adaptability to different materials.

1. The Role of Flywheel Special Machine Tools

Flywheel special machine tools are engineered to perform a range of operations, such as turning, milling, drilling, and grinding, specifically tailored for flywheel manufacturing. These machines ensure:

High Precision: Flywheels require tight tolerances to maintain balance and minimize vibrations. Special machine tools achieve micron-level accuracy.

Efficiency: Automated processes reduce production time while maintaining consistency.

Versatility: They can process various materials, including cast iron, steel, and composite materials.

Durability: Designed to withstand heavy-duty operations, these tools ensure long-term reliability.

2. Key Components of Flywheel Special Machine Tools

A typical flywheel special machine tool consists of several critical components:

a. Spindle Unit

The spindle is the heart of the machine, responsible for rotating the workpiece or cutting tool at high speeds. Flywheel machining demands robust spindles capable of handling high torque and maintaining stability under load.

b. Tooling System

Specialized cutting tools, such as carbide inserts or diamond-coated tools, are used to machine flywheel surfaces efficiently. Quick-change tooling systems enhance productivity by reducing setup times.

c. Workholding Devices

Hydraulic or pneumatic chucks securely hold the flywheel during machining, preventing misalignment and ensuring concentricity.

d. Control System

Advanced CNC (Computer Numerical Control) systems enable precise programming of machining paths, allowing for complex geometries and repeatable accuracy.

e. Cooling and Lubrication Systems

To prevent overheating and tool wear, these machines incorporate coolant delivery systems that enhance tool life and surface finish.

3. Machining Processes in Flywheel Production

Flywheel special machine tools perform several critical operations:

a. Turning

The primary process involves rotating the flywheel while a single-point cutting tool removes material to achieve the desired diameter and surface finish.

b. Facing

This operation ensures the flywheel’s surfaces are flat and perpendicular to the rotational axis, crucial for proper mating with other engine components.

c. Drilling and Boring

Holes for mounting bolts or balancing weights are drilled with high precision. Boring enlarges existing holes to exact dimensions.

d. Grinding

For ultra-fine finishing, grinding machines are used to achieve smooth surfaces and tight tolerances, reducing friction and wear.

e. Balancing

Some advanced machine tools integrate dynamic balancing systems to correct imbalances directly during machining, reducing post-processing steps.

4. Applications of Flywheel Special Machine Tools

Flywheel machine tools are indispensable in industries such as:

Automotive: Manufacturing flywheels for internal combustion engines and hybrid vehicles.

Energy Storage: Producing flywheels for kinetic energy recovery systems (KERS) and grid stabilization.

Aerospace: Crafting lightweight, high-strength flywheels for auxiliary power units.

Industrial Machinery: Supporting heavy-duty applications like presses and compressors.

5. Technological Advancements

Recent innovations in flywheel special machine tools include:

Automation & Robotics: Integration of robotic arms for loading/unloading, reducing manual intervention.

Smart Manufacturing: IoT-enabled sensors monitor tool wear and machine health in real-time, optimizing maintenance schedules.

Hybrid Machining: Combining additive manufacturing with traditional subtractive methods to create complex flywheel designs.

Energy Efficiency: Advanced spindle designs and regenerative braking systems reduce power consumption.

6. Challenges and Future Trends

Despite their advantages, flywheel machine tools face challenges such as:

Material Limitations: Machining high-strength alloys or composites requires specialized tooling.

Cost of Ownership: High initial investment and maintenance costs.

AI-Driven Optimization: Machine learning algorithms optimizing cutting parameters for maximum efficiency.

5-Axis Machining: Enabling more complex geometries in a single setup.

Sustainable Practices: Eco-friendly coolants and energy-efficient designs.

Flywheel special machine tools play a pivotal role in modern manufacturing, ensuring precision, efficiency, and reliability in flywheel production. As technology evolves, these machines will continue to advance, incorporating automation, smart systems, and sustainable practices to meet the growing demands of industries worldwide.

By understanding their functionalities and staying updated with innovations, manufacturers can leverage flywheel special machine tools to enhance productivity and maintain competitive advantage.
